Audi B8.5 S4 Headlight Intake / Headlight Delete DIY 3D Print File Pack

The 4RS B8.5 S4 Headlight Intake / Headlight Delete DIY File Pack is a digital 3D print package for builders who want to print and finish their own headlight intake setup.

This is not a generic STL. This file pack was developed specifically around the Audi B8.5 S4 headlight shape and includes both the no-lighting version and the with-lighting version, along with supporting files for mounting, and lighting features.

The finished printed and finished version starts at $400. This DIY file pack is for experienced 3D printing users who already have the printer, material, time, and ability to print, prep, finish, and install the part themselves.

WHAT IS INCLUDED:

- B8.5 S4 headlight intake main duct file
- No-lighting version
- With-lighting version

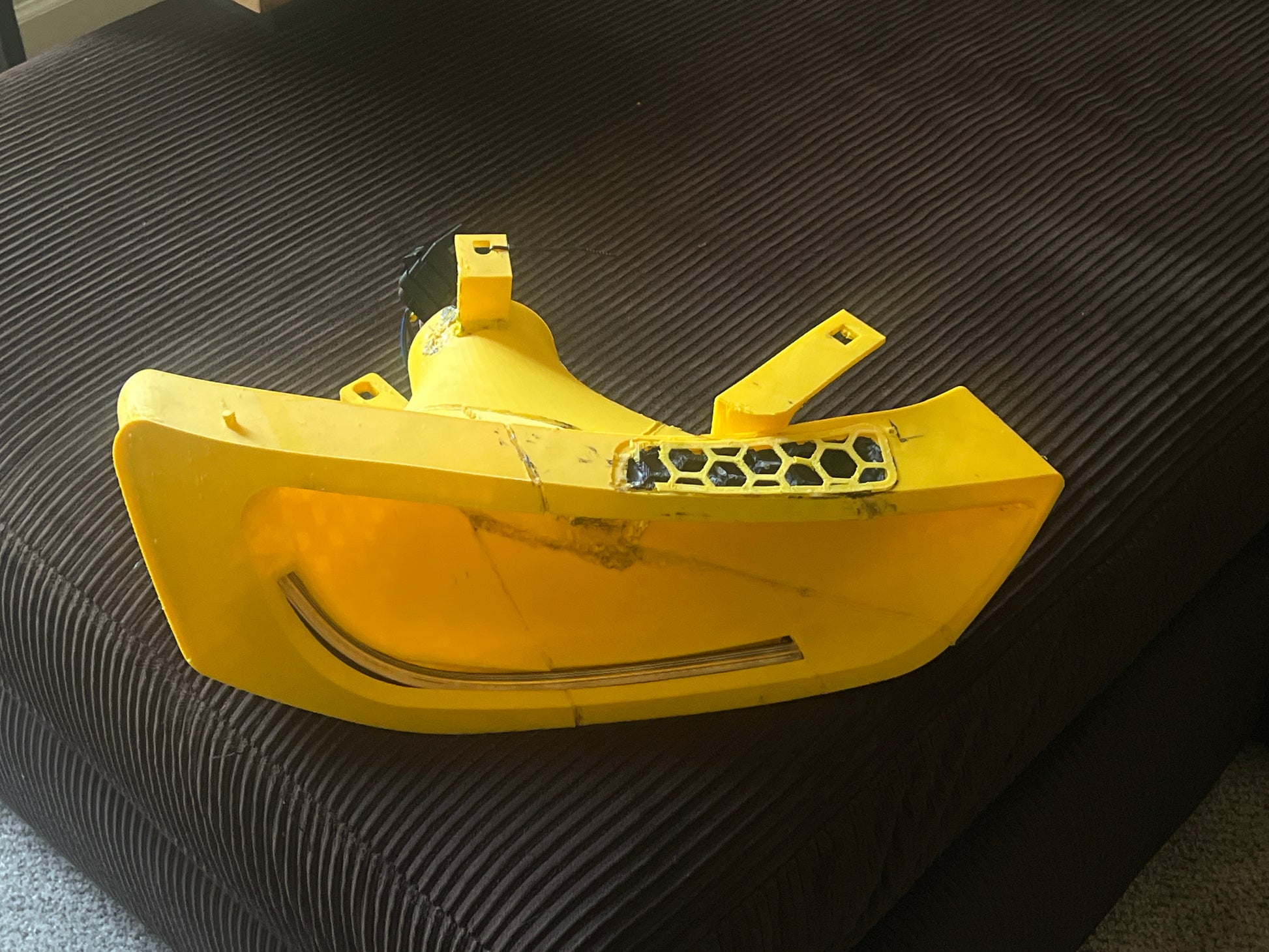

- Lighting feature files
- Hexagon light cover files
- Mounting feature files
- Mounting jig / bracket files
- Start-here README
- Printing notes
- Personal-use license
- Access to future update files

RECOMMENDED MATERIALS:

For installed automotive use, we recommend high-temperature engineering-grade materials such as:

- PAHT-CF
- PA-CF
- Nylon-CF
- ASA-CF
- ASA
- PETG-CF for mockup or properly finished use

PLA is not recommended for installed automotive or engine bay use.

PRINTING NOTES:

This is an advanced DIY file pack. Final fitment and quality depend on your printer, filament, slicer settings, calibration, shrinkage compensation, support setup, post-processing, and installation.

Large-format printing experience is recommended.

Minor sanding, trimming, drilling, filling, priming, painting, clear coating, or adjustment may be required.

For PAHT-CF / PA-CF users, shrinkage compensation may need to be adjusted in your slicer. A common starting point is around 100.5% to 100.7%, but your printer and filament may vary.

IMPORTANT:

This is a digital download only. No physical product will be shipped.

Digital downloads are non-refundable.

These files are for personal use only. You may not resell, redistribute, share, upload, commercially print, reproduce, or modify these files for resale without written permission from Four Rings Society.

Professional installation is recommended.

Four Rings Society is not responsible for failed prints, poor print quality, incorrect slicer settings, material issues, printer calibration issues, improper installation, wiring mistakes, heat damage, or vehicle damage caused by improper use.

Use at your own risk.
Last Update: V5.6
